Designing an Authentication System: a Dialogue in Four Scenes
This dialogue provides a fictitious account of the design of an open-source authorization system called “Haros”. As the dialogue progresses, the characters Athena and Euripides discover the problems inherent in applications using common authorization systems.
When they finish designing the system, Athena changes the system’s name to “Apache Fortress“, the name, coincidentally enough, of the authorization system that was designed and implemented at Apache’s “Directory Project“.
- Dramatis Personae
- Scene I
- Scene II
- Scene III
- Scene IV
- Scene V
||a newly promoted director of IT security and a people person.
||a longtime programmer specializing in security and reigning curmudgeon.
A cubicle area. Euripides is working on a project rollout, for a new financial system. Athena’s walking the floor with several other executives. She finds Euripides in the farthest corner, away from the elevator. All of the windows are covered and the lighting is muted.
Euripides: [clearing an old pizza box from the stained guest chair] Hey stranger! Haven’t seen you in a while. How’s life as a corporate bigwig?
Athena’s in distress but trying to conceal it. Before the promotion, she and Euripides worked on several projects together, the most successful, a Kerberos authentication system. Despite his gruff exterior, she’s learned to trust his candid viewpoint, particularly on security.
Athena: [gingerly sitting down] Not so great Rip. Our common security authorization system totally sucks. It’s tightly bound to the application data model and can’t be reused. It’s impossible to separate the security policy data from the business data. We’re going to have to build yet another authorization system for this new banking project you’re working on.
Euripides: [munching on a donut] Why are you telling me? I’m just a programmer.
Athena: [rolling her eyes] If only there was a way to externalize security policy so that it doesn’t taint the business model. That way we could have a common fine-grained authorization system that works across every application, on every system.
Euripides: [licking his fingers] We’ve been asking for one of those for as long as I’ve been here. It’ll happen when Hades freezes over. Here, have a donut, you’ll feel better.
Athena: [cringing] No thanks. I think it’s time to ask the Gods. Maybe, this has already been solved and we can save my team the odyssey of creating a new one.
Euripides: [eating another donut] Good luck [muttering under his breath] you’re going to need it.
Athena: What’s that?
Euripides: Oh uh yeah, tell ’em we need better authorization tools down here.
Athena: [walking briskly away] You better believe it.
Euripides’ cubicle, the next morning where he periodically spaces out while reading email. Every so often, he’ll respond with a cryptic and/or sarcastic one-liner. A strong proponent of a style of discourse known as ‘cartoon-speak’, points are added for comedic effect. Athena knocks on the cube wall startlingly him into the present.
Athena: [excitedly] I found the answer to our entrenched authorization problem!
Euripides: [yawning and scratching] Isn’t that wonderful. [feigning interest] That sure didn’t take very long.
Euripides moves a brown paper bag that’s oozing some kind of liquid from the guest chair to the floor and motions for her to have a seat. She pretends not to notice the bag has something that looks like feathers sticking out of its top and that there’s a funny smell in the air. Is there something still moving around in it? She can’t be sure.
Athena: [with a crinkled nose, electing to stand] As it turns out this problem has been studied for a very long time, like for ages. Almost as long as you’ve been a programmer, not quite.
Euripides: [perking up slightly] Is that so?
Athena: Right, there’s a research deity called NIST and they have many priests who sit in an ivory tower handing down directives for those of us living in the ‘real world’.
Euripides: I hate it when that happens.
Athena: I know right? So, the model I found is called Role-Based Access Control, and it’s governed by a specification from another powerful deity, ANSI, called INCITS 359.
Euripides: [sarcastically] That’s a real catchy name.
Athena: We’ll just call it RBAC for short.
Euripides: RBAC, isn’t that what our Linux systems have… with those Group thingies? We have to add ourselves to them, for root and what not.
Athena: Not exactly. There’s a bit more to it than that.
Euripides: Like what?
Athena: There are Users of course. And Groups, but they don’t call them that, rather they’re called Roles.
Euripides: Like for dinner?
Athena: Very funny. Roles are how Users are assigned to Permissions. Permissions are a combination of Resources and Operations.
Euripides: Sounds simple enough. Is that it?
Athena: Not quite. There’s also an entity called a Session. That’s where Roles go after the User logs in. One or more of their assigned Roles are then activated into the Session.
Euripides: [smirking] Kind of like dinner rolls only they’re not done yet, so we have to put them in the oven? Seems like a waste of time. Why not just let the people eat ’em uncooked?
Athena: [scowling but with patience] This is keeping with the principle of least privilege. The User is given the minimum authority to complete her meal, err tasks. Think about when someone goes on vacation or perhaps on a maternity leave. Do they need to be active in the system then?
Euripides: No, I suppose not. [hopefully] Is that it?
Athena: There’s more to it. What we’ve described so far is known as RBAC0. The absolute minimum that an application must do in order to be compliant. Many times that’s all that’s needed.
Euripides: [sighing] What else is there?
Athena: Well I’m still digging, let’s talk later.
Euripides: [relieved] Sounds good.
The next morning, Athena catches Euripides at the Starbucks kiosk inside their business plaza. He’s waiting on coffee, listening to Spotify and pretends not to see her. She taps him on the shoulder, forcing him to acknowledge her.
The two then grab their coffees, head to the condiment bar pouring in lots of creamer to mask the bitterness, before tucking themselves into a nearby booth.
Euripides: [audibly slurping] Well that didn’t take very long.
Athena: [wincing] Got it all figured out. Do you want to hear the rest of the story?
Euripides: Do I have a choice?
Athena: Very funny. Don’t make me place a hex on your dog. Where were we? Oh yeah, going over the various facets of the RBAC specification.
Euripides: I’m on the edge of my seat here.
Athena: [clears throat] RBAC1 is for Hierarchical Roles. That is we place inheritance relationships between Roles.
Euripides: Kind of like they’re in a family?
Athena: Sort of. Think about when it comes time to assign the Roles to Users, sometimes referred to as ‘Role engineering’. It’s a pretty tricky task as you might imagine. There are many levels of access. A Role can be a kind of module, and linked to others via inheritance. Perhaps Engineers need to also inherit all of the permissions that a normal User gets, plus everything that is normal for them.
Euripides: [caffeine kicking in] I see. It saves the trouble of having to constantly update all of the Roles anytime the Permissions change for a particular use case. Say we don’t want Users to be able to log into System X, we don’t have to change every Role, we only need to change the one. The others will realize the change automatically via inheritance. Also, the security administrator doesn’t have to understand that an Engineer is also a User. They just assign them the one, and that includes the other.
Athena: Very good. You really are more than just a programmer. But wait, there’s more. RBAC2 is Static Separation of Duties. This is where we establish mutual exclusion constraints between assigned Roles.
Euripides: Say what?
Athena: It’s not all that complicated. Basically, we can define sets of Roles and establish a cardinality between them. That is out of this entire set, only so many can be assigned to a given User.
Euripides: Why would we do that?
Athena: Think about conflicts of interests that arise in everyday scenarios. For example, we don’t want the person writing checks also approving them.
Euripides: Why not?
Athena: Well then they could write themselves checks, approve and then deposit into their bank accounts, illegally.
Euripides: That makes sense.
Athena: There’s also RBAC3, Dynamic Separation of Duties. It’s basically the same concept only with activated Roles not assigned.
Euripides: Oh, here we’re back to the Session right? One can be assigned the ‘check writer’ and ‘check approver’ Roles but can never activate them together into a Session. There’s a toxic relationship there.
Athena: Very good. You’re getting the hang of this Rip.
Euripides: [brushing off the compliment] It’s pretty straightforward. Ok, what else?
Athena: That’s pretty much it. Now, I go in front of the architecture review board and try to sell my idea of using RBAC authorization inside our business apps. Hopefully we can stop building new authorization utilities every time we build a new app.
Euripides: Good luck.
Athena: Why do you keep saying that?
After not hearing from Athena for a week, and no sign of her on slack, Euripides gets worried, and tracks her GPS location on Google to a courtyard inside their business campus, overlooking a large pond. He finds her slumped over a park bench by the shoreline, in obvious despair. A flotilla of turtles nearby, observing the scene somberly.
Euripides: Whoa! Look alive there sailor!
The turtles scatter.
Athena: [Lifting her head up] I was eaten alive by the board.
Euripides: How so?
Athena: They hated my idea. Told me they already understood RBAC, and it’s stupid.
Euripides: Why do they say that?
Athena: They called it quaint and said it hasn’t worked in the ‘real world’ for a long time.
Euripides: Did you tell them the NIST Gods control the real world?
Athena: [tearfully] Yes, but they didn’t believe me. They said that fine-grained authorization is nearly impossible to externalize because it’s tightly bound to the application’s business rules. For an RBAC system to compensate, too many Roles would be needed causing explosions, making a huge mess of our datacenter.
Euripides: What in hades are you talking about?

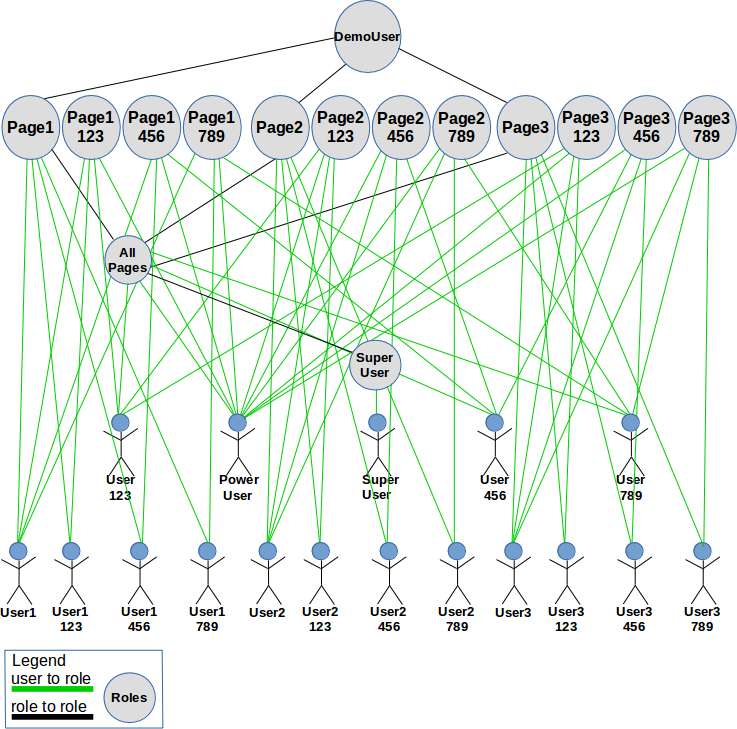

Athena: I’m talking about ‘Role explosion’ and it happens any time context is introduced into an RBAC policy.
Euripides: Context… like attributes and such?
Athena: Yes, like in our banking scenario we have an attribute associated with the location of the financial institution, or branch. There are over 1,000 separate locations today and our business plan calls for 10X that over the next few years. How do we specify that someone can be a Teller in one location and not in another?
Euripides: That’s easy. Just create Roles with the location as part of the name. Say Teller-North123 and Washer-South456.
Athena: That’s what I told them too. But they said the number of Roles gets multiplied by the number of locations. So if we have two Roles: Teller and Money Washer, and 1,000 locations, we end up with over 2,000 Roles to manage!
Euripides: Ay yi yi I see the problem.
Athena: The architects say the only way to fix it is to join the policy entities, i.e. User, Role, and Perm, with the Bank’s data, that includes its locations. This is hopeless because every application must have its own policy engine, one that understands its particular data model.
Euripides: Sounds like we’re back to square one. Now what?
Athena: Well, they’re talking about this new kind of authorization system called Attribute-Based Access Control, or ABAC. It downplays the Role. Everything is just an attribute, that can then get linked with a User at runtime.
Euripides: I mean, isn’t that just an Access Control List?
Athena: Well yeah, but there’s more, like dynamic policies. In ABAC, policies are expressions in which the various linked attributes are combined with the traditional security entities like Roles and Resources. Let’s say that I have a policy where the ‘Teller’ Role is still required to gain access to a cash drawer at a financial institution. We can also link additional attributes, like location. These attributes can come from anywhere. Something from the runtime environment, like location, time, IP address, platform, temperature of processors. Attributes also come from the the application domain. Things like hair color, favorite type of beer, how many donuts eaten yearly, literally anything under the helios.
Euripides: [rubbing his belly] That sounds loosey-goosey to me and again we still have our security data tightly bound to the application data.
Athena: You haven’t even heard the worst of it yet. The most popular ABAC systems use XML to transmit the data between their intermediaries.
Euripides: [retracting in horror] That’s bloody awful.
Athena: [despondently] If only there was a way to combine RBAC and ABAC. We could keep our common security data model and policy engine and combine a few attributes, like location, as needed.
Euripides: Holy Toledo, is that even allowed by the NIST Gods?
Athena: I don’t know but I’m going to find out.
Euripides: Good luck.
Athena: Stop saying that.
The following week at Euripides cubicle. Athena knocks, startling Euripides from a mid-afternoon siesta.
Euripides: [groggy and regretful of a third IPA during lunch] There you are. How’s it going today… have you found a solution to your exploding Roles?
Athena: [grinning] I sure did, and the architecture board has approved my plan for externalizing authorization.
Euripides: Wuff. How’d you manage to pull that off?
Athena: It was surprisingly easy. First, there’s nothing in RBAC that says that attributes aren’t allowed. So from a standards perspective we’re in the clear and the NIST Gods can’t hex our offspring.
Euripides: [nervously looking at a framed portrait of a dog on the cubicle wall] Oh, yeah, that’s good. Did the NIST high priests tell you how?

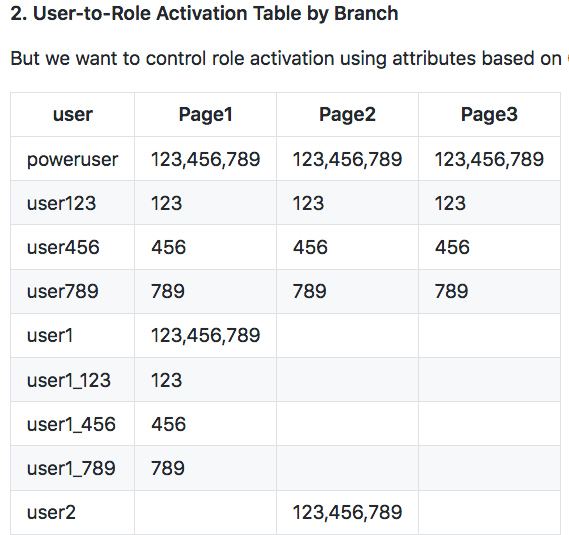

Athena: They gave me some ideas. There’s the user-role activation phase… back to our Banking example… remember the two Roles and 1,000 locations?
Euripides: [groaning] Like it was yesterday.
Athena: As we learned earlier, in RBAC, assigned Roles must be activated into the Session before a particular User can perform operations on the Role’s corresponding resources.
Euripides realizing he’s famished, snatches a cookie wedged against a burger from a day-old takeout box on his desk, almost takes a bite, thinks better of it, (trying to be nice) offers it to Athena, who vigorously shakes her head and frowns. He then shrugs and begins eating it, a bit of ketchup hanging from one side dropping onto his shirt.
Euripides: [talking with his mouth full] How could I forget?
Athena: [disgusted] Anyway, we can add a constraint during activation to detect whether the Role being activated matches location. For example, only activate the Teller Role for Curly when he’s at the North branch.
Euripides: [takes a swig from a two-liter of mountain dew and burps with evident gusto] ‘scuse me. That’s the policy but how is it enforced?
Athena: Could … you …
Athena: [waving her hands] ew! Just … never mind. We’re making the constrained Roles special to the system. The policy engine has to know when activating any Role, that it might have a dynamic constraint placed upon it. Here, a property associated with the Role’s name will do quite well.
[clears a tiny space on the cluttered whiteboard and begins drawing]:
Euripides: This covers how the authorization system knows when to check for a dynamic constraint, but where will the actual attribute values be stored?
Athena: On the User’s entity of course. With RBAC, there is already a User-Role assignment that is bound to the User entity. We simply need to place a couple of delineated properties on that assignment. For example the Role assignment looks like this:
[draws on whiteboard]:
Role Assignment: Teller:locale:North123
Role Assignment: Washer:locale:South456
Euripides: We’re still missing a piece here. How does the authorization system get the current valid values of a dynamic constraint? For our scenario, which locale they’re in?
Athena: It just pushes that into the runtime context…
[draws on whiteboard]:
Session session = createSession("Curly", "locale:North123");
Euripides: Ah! Now, when the runtime activates Curly’s Roles, it knows that they’re special and will compare the value of the constraint pushed into the API with that stored on the User-Role assignment. Here, Curly will be a Teller because we’re in the North, right?
Athena: That’s right. There really is more to you than your curmudgeonly demeanor suggests.
Euripides: [reflectively, with a bit of ketchup still on his shirt] Yep. Sometime’s it’s hard for me to be humble. What’d the board have to say?
Athena: [handing him a napkin] What could they? We’re pushing into the financial system as we speak. The Bank is happy because now we’re not spending a bunch of money on a new ABAC system. We just made a couple tweaks to our old RBAC system and everyone’s happy.
Euripides: The Gods must be pleased, maybe we’ll finally get raises.
Athena: Don’t push your luck.
