Testing the py-fortress RBAC0 System

The Command Line Interpreter (CLI) may be used to drive the RBAC System APIs,  to test, verify and understand a particular RBAC policy.

This document also resides here: README-CLI-AUTH

Prerequisites

Sample RBAC0 Policy

  • This tutorial covers the basics, RBAC Core: Many-to-many relationships between users, roles and perms and selective role activations.
  • py-fortress adds to the mix one non-standard feature: constraint validations on user and role entity activation.
  • The simple policy includes constraints being setup on user and role. Later we’ll demo a role timing out of the session.

Users

uid timeout begin_time end_time
chorowitz 30min

Roles

name timeout begin_time end_time
account-mgr 30min
auditor 5min

constraints are optional and include time, date, day and lock date validations

User-to-Role Assignments

user account-mgr auditor
chorowitz true true

Permissions

obj_name op_name
page456 edit
page456 remove
page456 read

Role-to-Permissions

role page456.edit page456.remove page456.read
account-mgr true true false
auditor false false true

 Getting Started

The syntax for testing py-fortress system commands:

clitest operation --arg1 --arg2 ...

Where clitest executes a package script that maps to this module:

pyfortress.test.cli_test_auth

The operation is (pick one)

  •  auth => access_mgr.create_session
  • check => access_mgr.check_access
  • roles => access_mgr.session_roles
  • perms => access_mgr.session_perms
  • add => access_mgr.add_active_role
  • drop => access_mgr.drop_active_role
  • show => displays contents of session to stdout

Where operations => functions here: access_mgr.py

The args are ‘–‘ + attribute name + attribute value

  • –uid and –password from user.py
  • –obj_name, –op_name and –obj_id from perm.py
  • –role used for the role name

Command Usage Tips

  • The description of the commands, i.e. required and optional arguments, can be inferred via the api doc inline to the access_mgr module.
  • This program ‘pickles’ (serializes) the RBAC session to a file called sess.pickle, and places in the executable folder.  This simulates an RBAC runtime to test these commands.
  • Call the auth operation first, subsequent ops will use and refresh the session.
  • Constraints on user and roles are enforced. For example, if user has timeout constraint of 30 (minutes), and the delay between ops for existing session exceeds, it will be deactivated.

___________________________________________________________________________________

Setup an RBAC Policy Using admin_mgr CLI

To setup RBAC test data, we’ll be using another utility that was introduced here: README-CLI.md.

From the py-fortress/test folder, enter the following commands:

1. user add – chorowitz

$ cli user add --uid chorowitz --password 'secret' --timeout 30

user chorowitz has a 30 minute inactivity timeout

2. role add – account-mgr

$ cli role add --name 'account-mgr'

3. role add – auditor

$ cli role add --name 'auditor' --timeout 5

role auditor has a 5 minute inactivity timeout, more later about this…

4. user assign – chorowitz  to role account-mgr

$ cli user assign --uid 'chorowitz' --role 'account-mgr'

5. user assign – chorowitz to role auditor

$ cli user assign --uid 'chorowitz' --role 'auditor'

6. object add – page456

$ cli object add --obj_name page456

7. perm add – page456.read

$ cli perm add --obj_name page456 --op_name read

8. perm add – page456.edit

$ cli perm add --obj_name page456 --op_name edit

9. perm add – page456.remove

$ cli perm add --obj_name page456 --op_name remove

10. perm grant – page456.edit to role account-mgr

$ cli perm grant --obj_name page456 --op_name edit --role account-mgr

11. perm grant – page456.remove to role account-mgr

$ cli perm grant --obj_name page456 --op_name remove --role account-mgr

12. perm grant – page456.read  to role auditor

$ cli perm grant --obj_name page456 --op_name read --role auditor

________________________________________________________________________________

Perform cli_test_auth.py access_mgr Commands

From the py-fortress/test folder, enter the following commands:

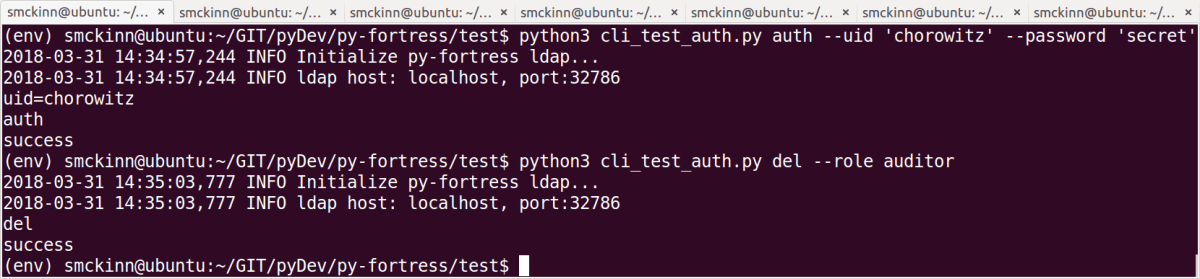

1. auth – access_mgr.create_session – authenticate, activate roles:

 $ clitest auth --uid 'chorowitz' --password 'secret'
 uid=chorowitz
 auth
 success

Now the session has been pickled in on file system in current directory.

2. show – output user session contents to stdout:

$ clitest show
show
session
    is_authenticated: True
    user:
    last_access:
user
    cn: chorowitz
    constraint:
    system: []
    roles: ['account-mgr', 'auditor']
    dn: uid=chorowitz,ou=People,dc=example,dc=com
    uid: chorowitz
    internal_id: 552c1a24-5087-4458-98f1-8c60167a8b7c
    reset: []
    sn: chorowitz

    User Constraint:
        name: chorowitz
        raw: chorowitz$30$$$$$$$
        timeout: 30
    User-Role Constraint[1]:
        name: account-mgr
        raw: account-mgr$0$$$$$$$
    User-Role Constraint[2]:
        name: auditor
        raw: auditor$5$$$$$$$
        timeout: 5
success

Displays the contents of session to stdout.

3. check – access_mgr.check_access – perm page456.read:

$ clitest check --obj_name page456 --op_name read
op_name=read
obj_name=page456
check
success

The user has auditor activated so unless timeout validation failed this will succeed.

4. check – access_mgr.check_access – perm page456.edit:

$ clitest check --obj_name page456 --op_name edit
op_name=edit
obj_name=page456
check
success

The user has account-mgr activated and this will succeed.

5. check – access_mgr.check_access – perm page456.remove:

$ clitest check --obj_name page456 --op_name remove
op_name=remove
obj_name=page456
check
success

The user has account-mgr activated and this will succeed.

6. get – access_mgr.session_perms:

$ clitest perms
perms
page456.read:0
  abstract_name: page456.read
  roles: ['auditor']
  internal_id: d6887434-050c-48d8-85b0-7c803c9fcf07
  obj_name: page456
  op_name: read
page456.edit:1
  abstract_name: page456.edit
  roles: ['account-mgr']
  internal_id: 02189535-4b39-4058-8daf-af0e09b0d235
  obj_name: page456
  op_name: edit
page456.remove:2
  abstract_name: page456.remove
  roles: ['account-mgr']
  internal_id: 10dea5d1-ff1d-4c3d-90c8-edeb4c7bb05b
  obj_name: page456
  op_name: remove
success

Display all perms allowed for activated roles to stdout confirms that user indeed can read, edit and remove from Page456.

7. drop – access_mgr.drop_active_role – auditor:

$ clitest drop --role auditor
drop
role=auditor
success

RBAC distinguishes between roles assigned or activated and privileges can be altered in the midst of a session.

8. roles – access_mgr.session_roles

$ clitest roles
roles
account-mgr:0
  raw: account-mgr$30$$$20180101$none$$$1234567
  end_date: none
  name: account-mgr
  timeout: 30
success

Notice the audit role is no longer active.

9. check – access_mgr.check_access – perm page456.read (again):

$ clitest check --obj_name page456 --op_name read
op_name=read
obj_name=page456
check
failed

The auditor role was deactivated so even though it’s assigned, user cannot perform as one.

10. add – access_mgr.add_active_role – auditor:

$ clitest add --role auditor
add
role=auditor
success

Now the user should be allowed to resume audit activities.

11. roles – access_mgr.session_roles:

$ clitest roles
roles
account-mgr:0
  raw: account-mgr$30$$$20180101$none$$$1234567
  end_date: none
  name: account-mgr
  timeout: 30
auditor:1
  raw: auditor$5$$$20180101$none$$$1234567
  timeout: 5
  name: auditor
  begin_lock_date: success
success

Notice the audit role has been activated once again.

12. check – access_mgr.check_access – perm page456.read (for the 3rd time):

$ clitest check --obj_name page456 --op_name read
op_name=read
obj_name=page456
check
success

The auditor role activated once again so user can do auditor things again.

13. Wait 5 minutes before performing the next step.

Allow enough time for auditor role timeout to occur before moving to the next step. Now, if you run the roles command, the auditor role will once again be missing.  This behavior is controlled by the ‘timeout’ attribute on either a user or role constraint.

14. check – access_mgr.check_access – perm page456.read:

$ clitest check --obj_name page456 --op_name read
op_name=read
obj_name=page456
check
failed

Because the auditor role has timeout constraint set to 5 (minutes), it was deactivated automatically from the session.

END
